1951 Chevy 3800 Dually Chassis Swap- Frame Shortening

Before we jump into the specifics of what we’re doing here, I’ll give a brief introduction of the project (full project build thread will soon be linked here).

Current truck above and rendering of what it’s going to look like below.

For the purpose of this post, however, I’l just say that we’re swapping the body of the 1951 Chevy 3800 truck onto the chassis of an 1982 GM 1 ton dually which will require taking 23″ out of the wheelbase. We’re doing it so that we can match the original 137″ wheelbase of the 3800 truck. “Why would we do this?”, you ask? For 3 reasons.

  1. The goal is to be able to use the truck again as a truck, so we wanted to have as beefy of running as original (No s-10 chassis swap here) as we want to be able to haul and tow with this truck.
  2. We wanted disc brakes, power steering, and a rear gear that allowed traveling at highway speeds
  3. Cost- To accomplish the above on the original frame would be much more costly than swapping the body onto a chassis that already got us there.



Now that you know why, lets talk about what we did.

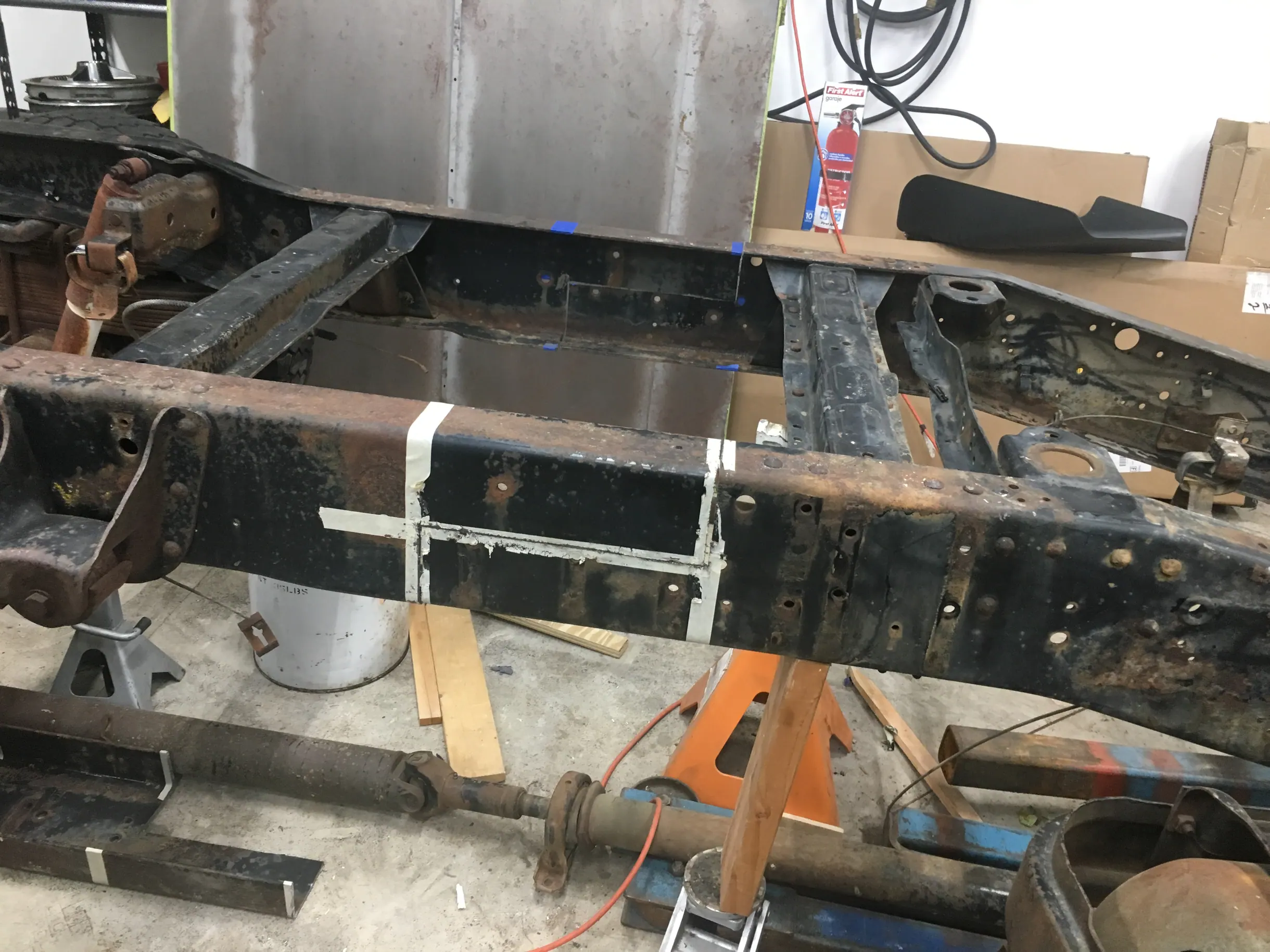

Ok, we cut the frame in half… with a saws-all…. then welded it back together. Pretty straight forward. Well, it was a bit more than that. Instead of making straight cuts, we measured, marked, and measured again, and cut out a “Z” shape so that when it went back together, it would be much stronger than just loping off the frame straight down.

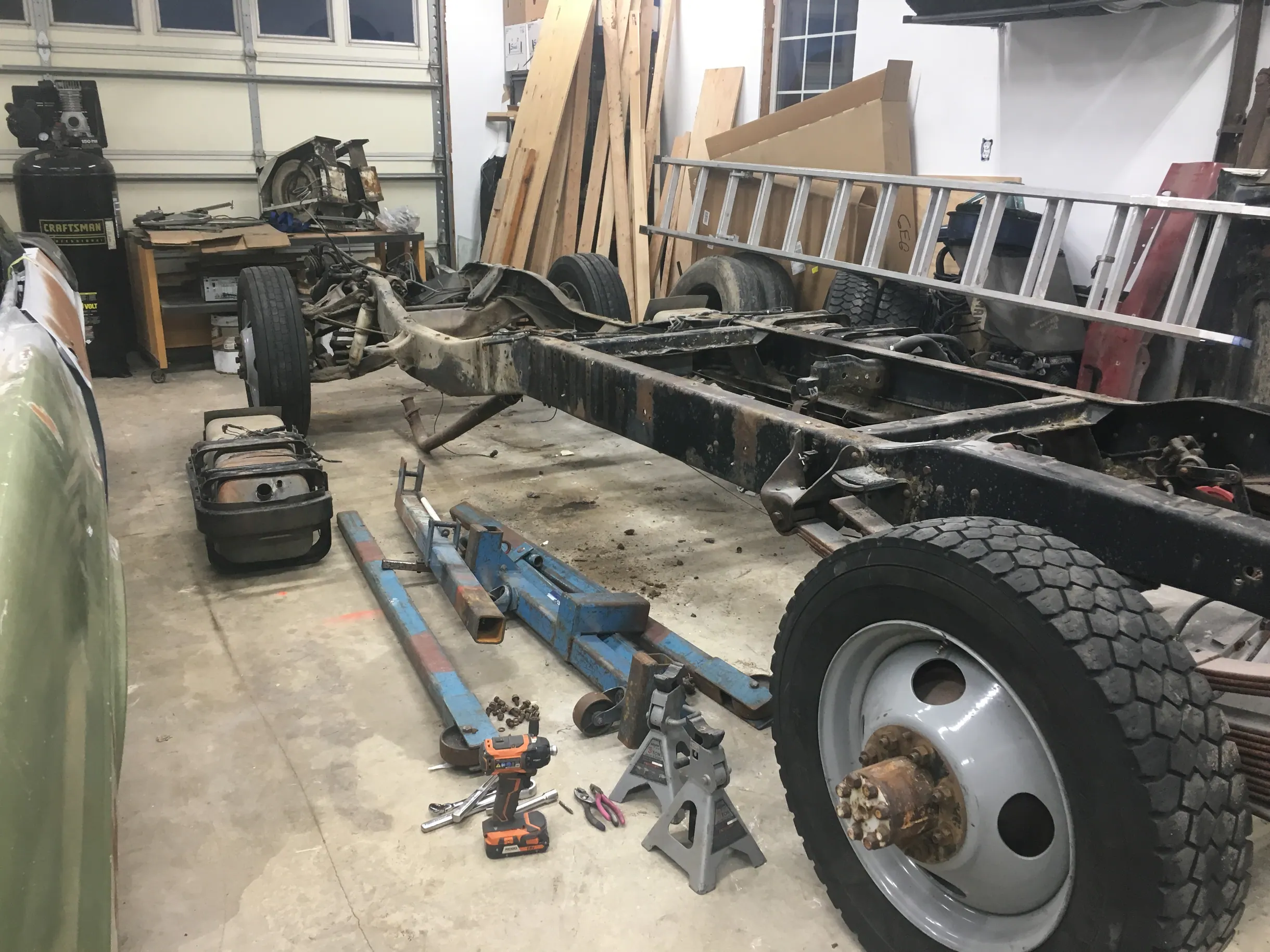

Original 1982 1 Ton Dually Frame

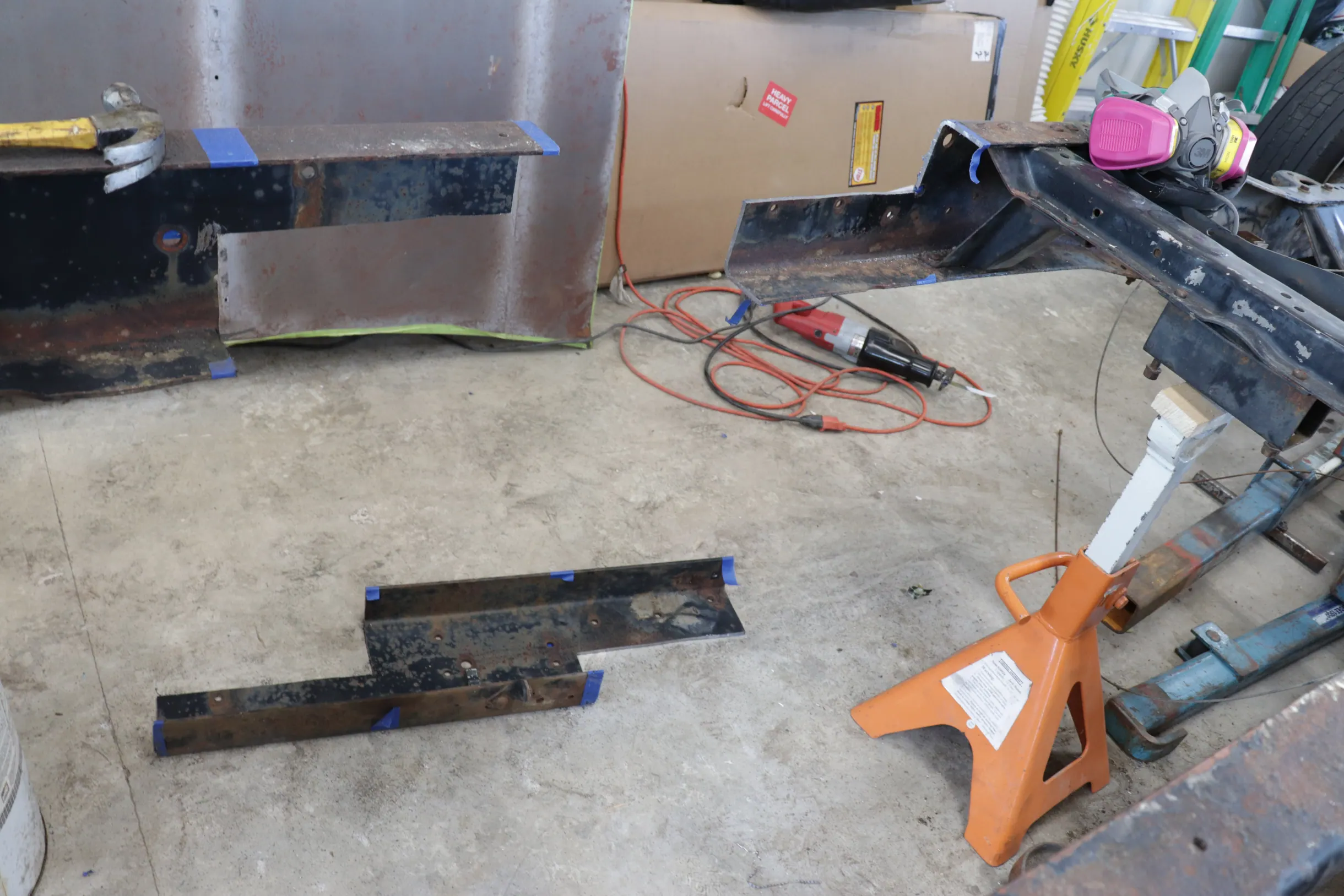

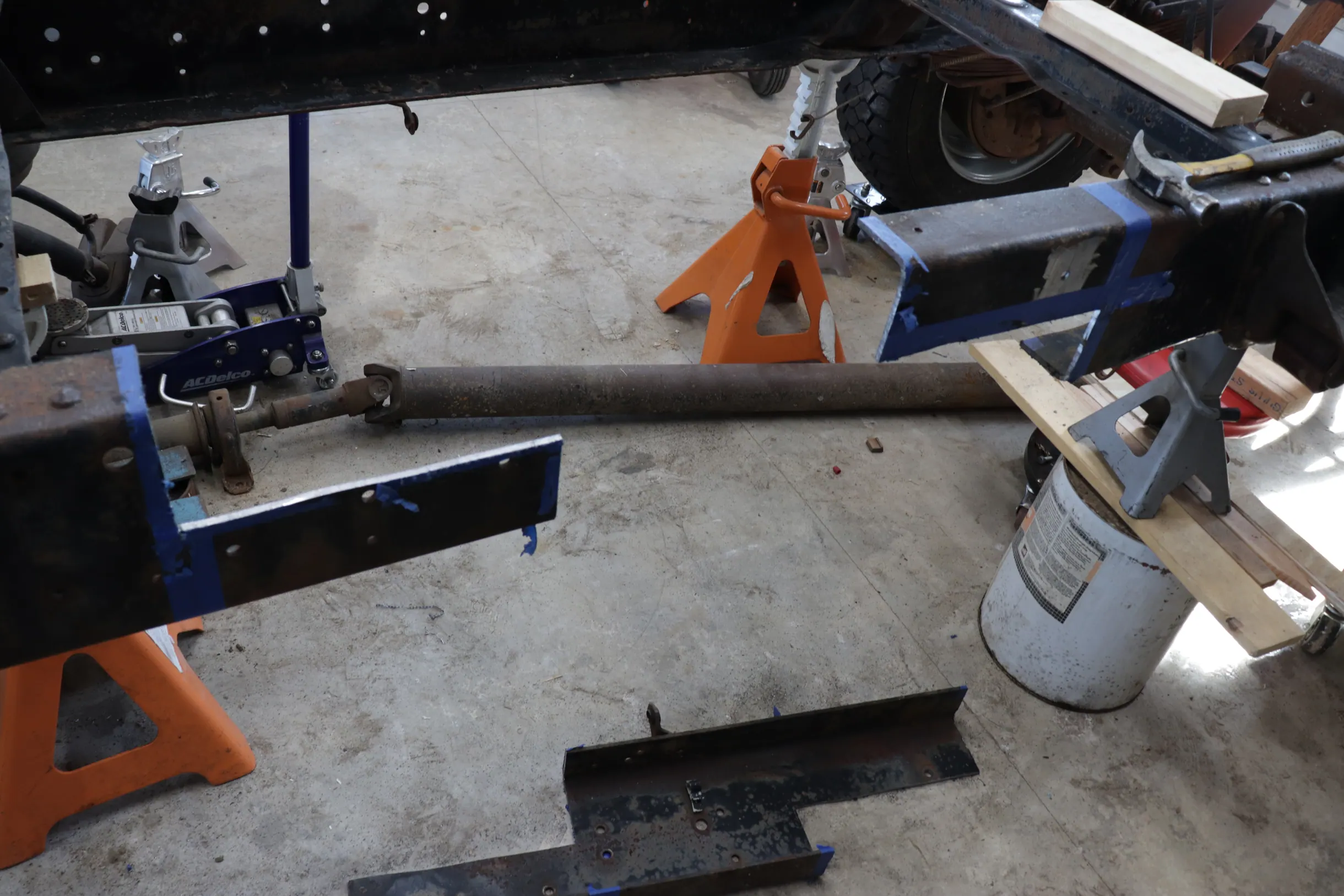

Time to cut!

After doing this to both sides, we pushed the back half forward 23″ to join back up with the front. Fingers crossed our measurements were close.

Good enough!

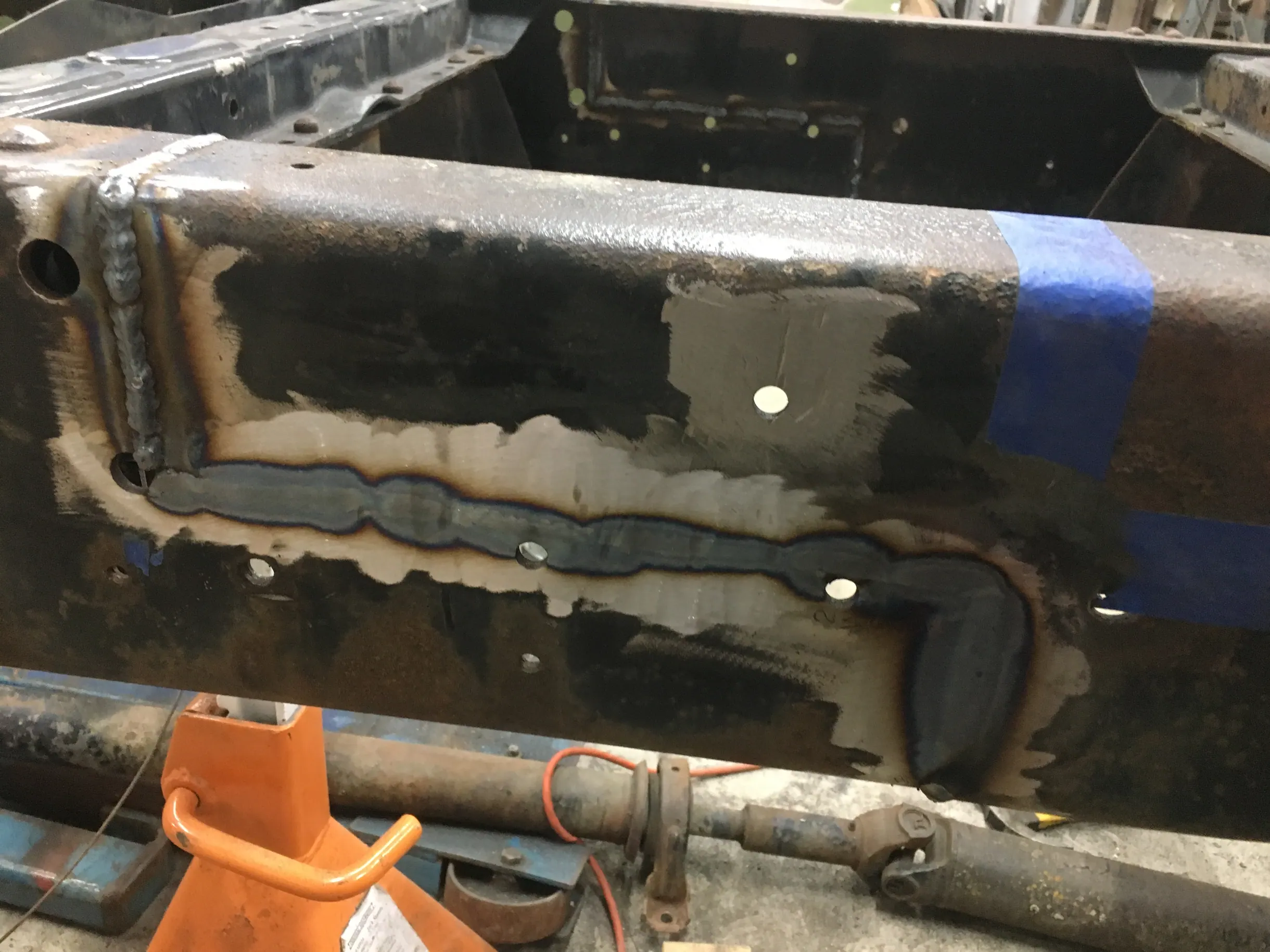

Now, to clean up the cuts, line everything up, and glue this thing back together!

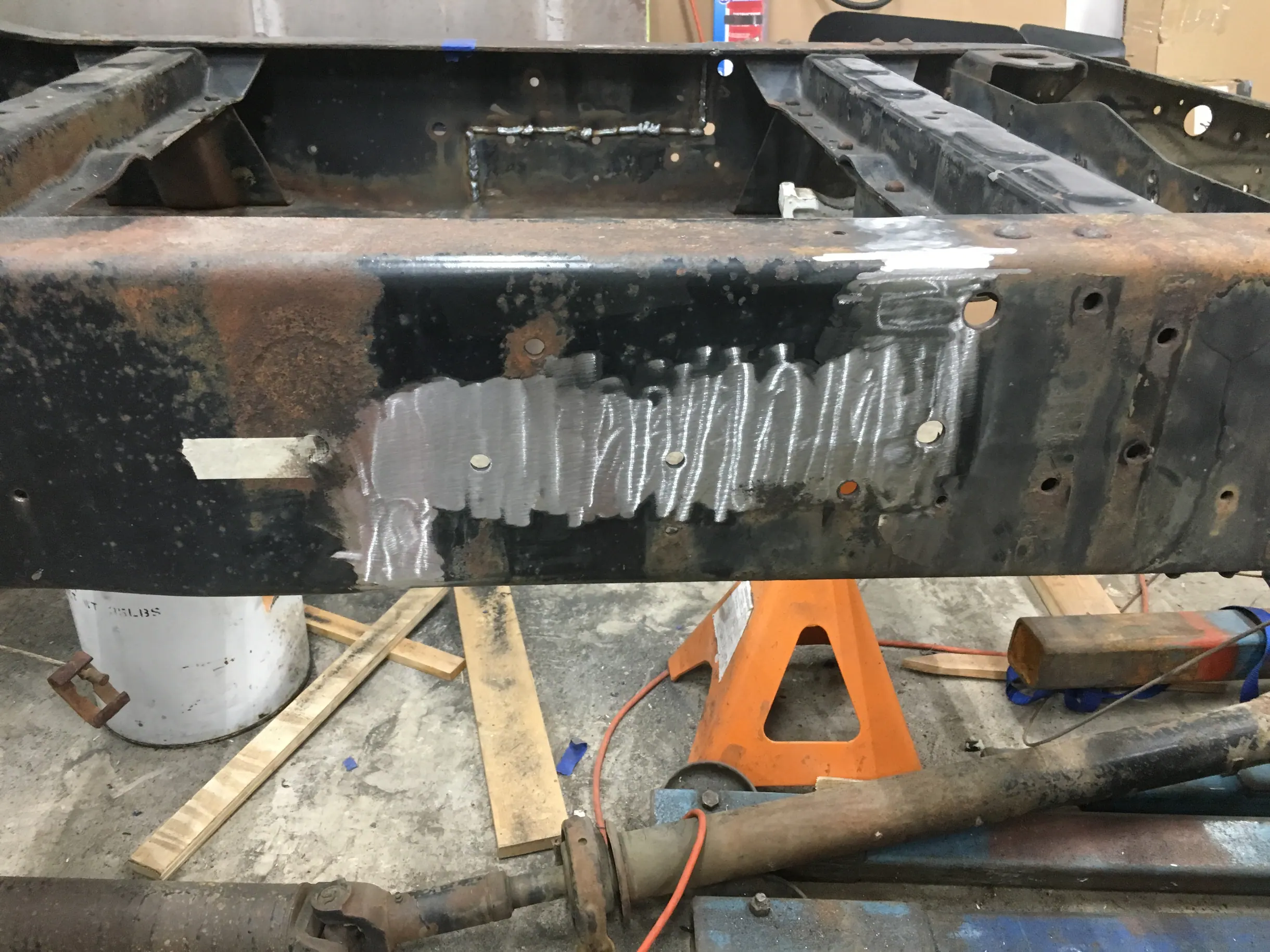

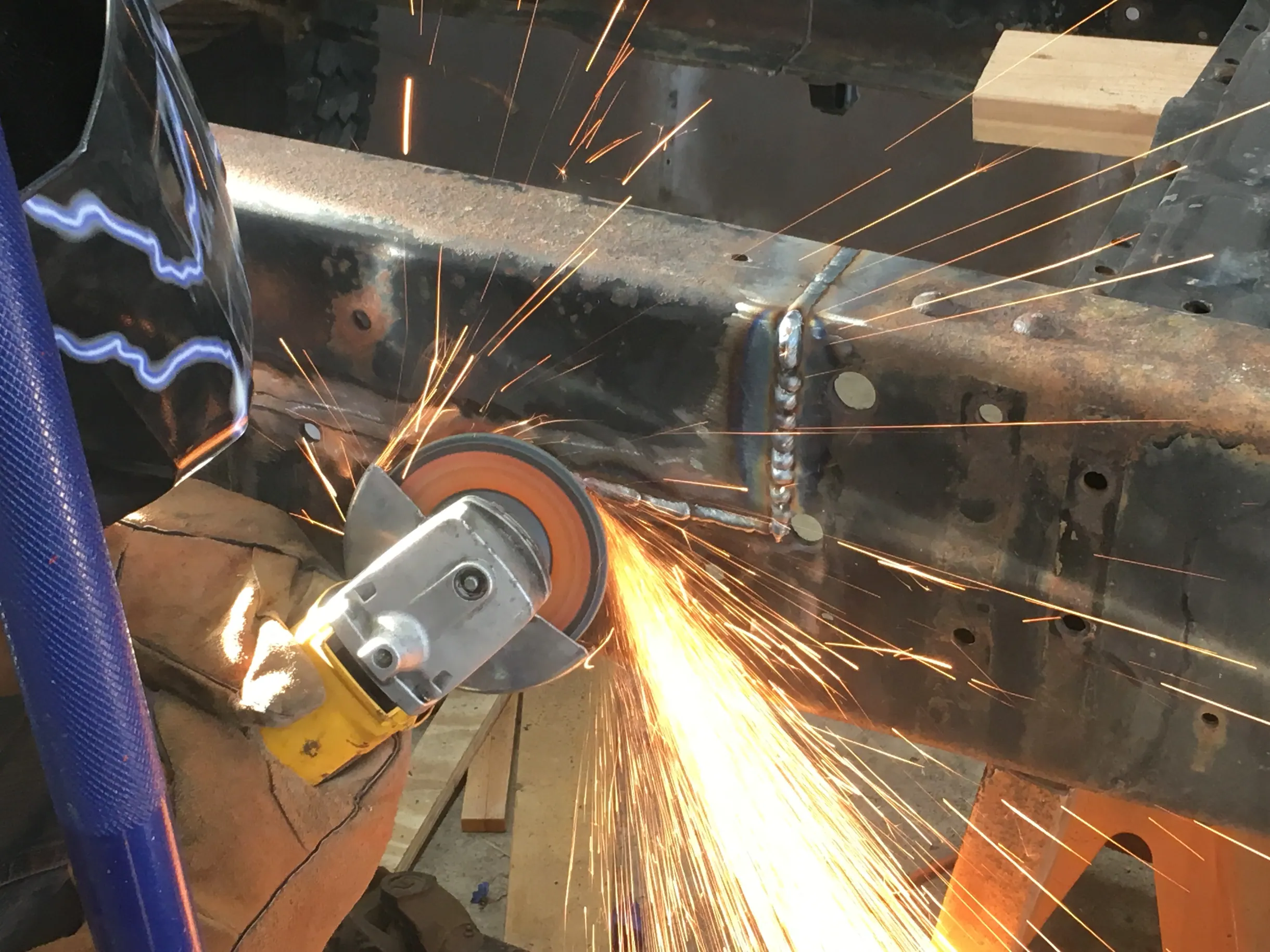

It welded up nicely. Now to grind down the welds and smooth everything out.

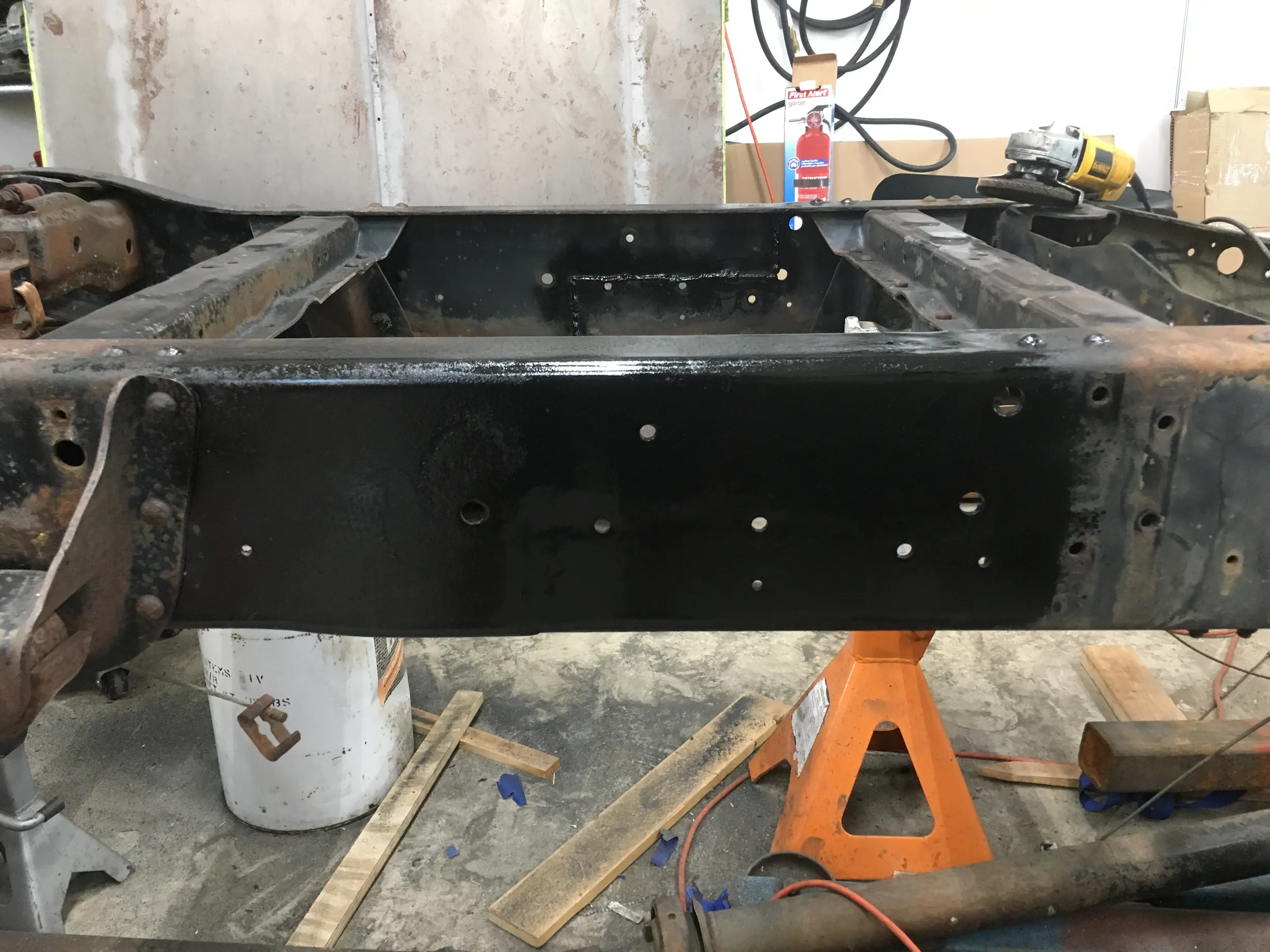

After a quick coat of paint to cover up the bare metal, you can’t even tell we were in there!



Don’t worry, we’ll be boxing the inside as well for some added strength, but it came out pretty nice and will be plenty strong. Because the truck will have a flatbed on the back, there wasn’t any need to worry about any bed mounting locations lining up.



If you’d rather watch what we did, check out the video below!



More to come as we fab up the body mounts and start to get the rest of it together!

Stay tuned!

3 Comments

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  • Jeffrey Torbert 1 month ago

    Do you have to do any modification the the width in the front the old trucks seem to have a narrower track width. I just purchased a 51 dump truck and am wanting to do something similar. Thanks Jeff

    • Nick Jeffrey Torbert 3 weeks ago

      Hi Jeffery,
      Actually yes, we had to do some things to make this work, and more importantly, look right. We opted to remove the dually front hubs, and swap them for the non-dually front hubs, to decrease the front track width by about 7″. Unfortunately, this wasn’t going to work, as the calipers would now hit the hit the dually wheels. So, we picked some 1″ spacers, which moved the wheels out enough to clear the calipers, but still kept the overall track width reduced 5″, which put the outer edges of the tires nicely inside the fenders, giving us the desired “looks like it belongs on this frame” look we were after. I’ll be posting an update to this article with pictures of the wheel fitment so check back soon!
      I hope this helps!
      -Nick
